Single Parallel Sliding Gate Valves
Product details
A0C-9031 series tablet single gate gate valve is only called tablet valve) is one of the important varieties of controlling valves in the production process. The flat gate valve has good opening and closing characteristics. It has the characteristics of full diameter, small flow resistance, good sealing, convenient switching and other. It can be applied to the transportation pipeline and storage equipment of refined oil; oil, natural gas mining wells and pipelines with suspended particles and fibers.

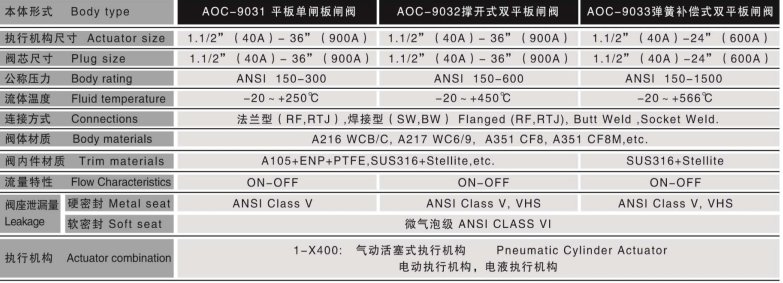

Product properties

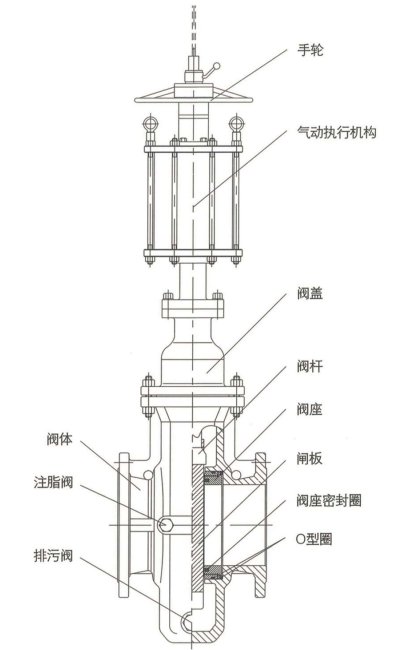

The structure and Structural Characteristics

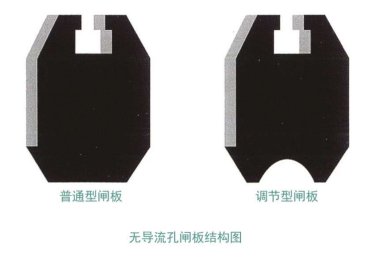

The Characteristics of No Diversion Hole Structure
● The gate does not have a diversion hole. The valve structure is compact, small, and light weight.
● The gate can be designed and manufactured into V -shaped, semi -circular, and pentagonal channels, so that the valve has regulatory performance and can be adjusted arbitrarily to meet the requirements of the traffic system.
● The two valve seats are floating, with the characteristics of soft and hard composite seals, and have a long service life. When the pressure of the inner cavity of the valve rises abnormally, the floating valve seat can automatically discharge high pressure to the pipeline.
● The liposuction valve is provided at the two valve seats outside the valve body. When the valve is used during the use of the sealing side abrasion, the sealing fat can be injected through this to prevent the valve leakage.
● The lower part of the valve has a sewage valve to discharge dirt accumulated inside the valve.

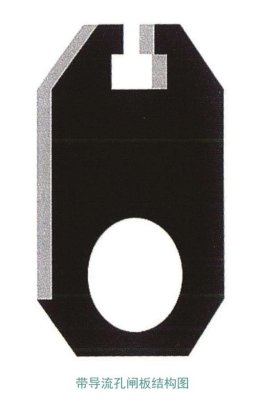

Bringing the Ducts of The Pilot Gate Structure Diagram
● When the valve is fully opened, the pilot pores of the gate and the valve body channel form a direct tube section, which can be directly used with a medium.
● The valve seat is always in line with the gate in the opening or closing itinerary. The soft valve seat can automatically scrape the impurities on the gate during the operation of the gate. And the cover of the valve seat will not be damaged by the heat deformation of the valve body.
● The two valve seats are floating, with the characteristics of soft and hard composite seals, and have a long service life.
● When the pressure of the inner cavity of the valve rises abnormally, the floating valve seat can automatically discharge high pressure into the pipeline.
● The lower part of the valve has a sewage valve to discharge dirt accumulated inside the valve.
